Which ISO numbers are on the Pro-Cut Diamonds — Round End Taper page?

ISO 193, 196, 198, 199, 218, 220, 222, 223. Pick the size to see each bur's ISO number, head diameter and length, and its part number.

Which grits are available and what do the colour bands mean?

Extra Fine (yellow band), Fine (red band), Medium (blue band), Very Coarse (black band), Coarse (green band).

How many burs come in a pack?

5 per pack; the price shown is per pack.

What shank type is this?

FG (friction grip, for high-speed handpieces).

What is the maximum operating speed?

300,000 rpm, as marked on the pack.

Is it sterile and single-use?

Supplied non-sterile — clean and sterilize before each use per the manufacturer's instructions; reusable, not single-use.

How do I find a specific part number?

The table above lists every part number on this page with its ISO, size and grit. Searching the part number (for example D086EF) on this site opens the right page.

Shofu Dental Corp, Pro-Cut range.

Shofu Dental CorpIn stock

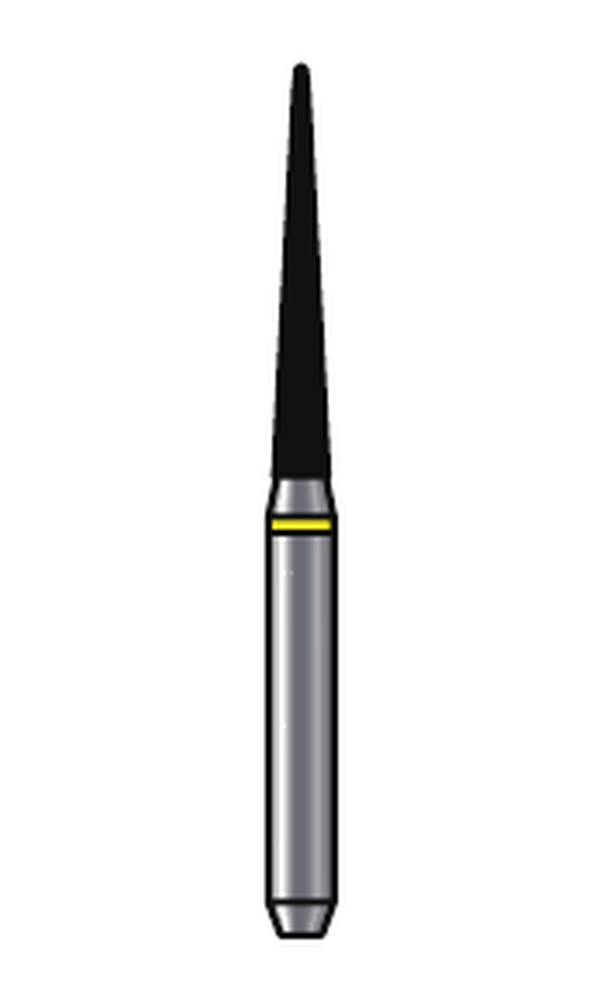

Pro-Cut Diamonds — Round End Taper

SKU 102-2415MFR# D086EF

At a glance

In stock and ready to ship
Item code 102-2415
Sourced from Shofu Dental Corp

Size (ISO) 193 · 1.3 x 10 mm · D086EF

193 · 1.3 x 10 mm · D086EF193 · 1.3 x 10 mm · D087EF193 · 1.4 x 10.1 mm193 · 1.5 x 10.2 mm193 · 1.7 x 10.4 mm196 · 1.2 x 5.2 mm196 · 1.3 x 5.3 mm196 · 1.4 x 4.1 mm196 · 1.5 x 4.2 mm196 · 1.9 x 5.1 mm196 · 2 x 5.2 mm198 · 1.2 x 9.2 mm198 · 1.3 x 9.3 mm198 · 1.5 x 9 mm 198 · 1.6 x 7.9 mm198 · 1.8 x 8.1 mm198 · 1.7 x 8.7 mm198 · 1.8 x 8.8 mm198 · 1.9 x 8.9 mm198 · 2 x 9 mm198 · 2.1 x 9.1 mm198 · 1.8 x 7.9 mm198 · 2 x 8.1 mm198 · 2.1 x 8.7 mm198 · 2.2 x 8.8 mm198 · 2.3 x 8.9 mm199 · 1.5 x 10.2 mm · D100M199 · 1.4 x 10.1 mm199 · 1.5 x 10.2 mm · D101M199 · 1.6 x 10.1 mm199 · 1.7 x 10.2 mm218 · 1.2 x 7 mm 218 · 1.3 x 7 mm218 · 1.5 x 7.1 mm220 · 1.5 x 10.1 mm · D105M220 · 1.5 x 10.1 mm · D106M222 · 1.3 x 7.2 mm222 · 1.4 x 7.1 mm222 · 1.5 x 7.2 mm222 · 1.6 x 7.3 mm222 · 1.7 x 7.4 mm223 · 1.3 x 9.1 mm223 · 1.6 x 9.2 mm · D110M223 · 1.7 x 9.3 mm · D110C223 · 1.8 x 9.4 mm · D110VC223 · 1.4 x 9 mm223 · 1.5 x 9.1 mm223 · 1.6 x 9.2 mm · D111M223 · 1.7 x 9.3 mm · D111C223 · 1.8 x 9.4 mm · D111VC223 · 2.1 x 9.2 mm · D112M223 · 2.2 x 9.3 mm223 · 2 x 9.1 mm223 · 2.1 x 9.2 mm · D113M223 · 2 x 11.6 mm223 · 2.1 x 11.7 mm223 · 2.2 x 11.8 mm · D114C223 · 2.2 x 11.8 mm · D115C

Grit Extra Fine

Extra FineFineMediumVery CoarseCoarse

Pro-Cut Diamonds are a premium line of multi-use diamond burs engineered for exceptional cutting efficiency, durability and value. Advanced Electro-Deposition Technology and a proprietary multi-coating process retain diamond particles for consistent, reliable performance; the result is a concentric, balanced bur that delivers smooth cutting action and long-lasting performance across a wide range of procedures. More than 300 burs in five color-coded grits, including minimally invasive and short-shank options. Pack of five.

Pro-Cut Diamonds — Round End Taper: 58 items, 50 Size (ISO) options, 5 Grit options, pack of 5. Select the size and grit to see the exact bur, its ISO number and part number.

Multi-use diamond made with Shofu's Electro-Deposition Technology and multi-layer coating on a single-piece stainless-steel shank, for lasting sharpness, concentric balance and reduced clogging; indicated for cavity and crown preparation and for the reduction or modification of dental materials. Maximum 300,000 min⁻¹. Pack of 5.

ISO numbers on this page: 193, 196, 198, 199, 218, 220, 222, 223.

Part no.	ISO	Size (ISO)	Grit
D086EF	193	193 · 1.3 x 10 mm · D086EF	Extra Fine
D087EF	193	193 · 1.3 x 10 mm · D087EF	Extra Fine
D087F	193	193 · 1.4 x 10.1 mm	Fine
D087M	193	193 · 1.5 x 10.2 mm	Medium
D087VC	193	193 · 1.7 x 10.4 mm	Very Coarse
D088M	196	196 · 1.2 x 5.2 mm	Medium
D088C	196	196 · 1.3 x 5.3 mm	Coarse
D089F	196	196 · 1.4 x 4.1 mm	Fine
D089M	196	196 · 1.5 x 4.2 mm	Medium
D090F	196	196 · 1.9 x 5.1 mm	Fine
D090M	196	196 · 2 x 5.2 mm	Medium
D091M	198	198 · 1.2 x 9.2 mm	Medium
D091C	198	198 · 1.3 x 9.3 mm	Coarse
D092EF	198	198 · 1.5 x 9 mm	Extra Fine
D094EF	198	198 · 1.6 x 7.9 mm	Extra Fine
D094M	198	198 · 1.8 x 8.1 mm	Medium
D095EF	198	198 · 1.7 x 8.7 mm	Extra Fine
D095F	198	198 · 1.8 x 8.8 mm	Fine
D095M	198	198 · 1.9 x 8.9 mm	Medium
D095C	198	198 · 2 x 9 mm	Coarse
D095VC	198	198 · 2.1 x 9.1 mm	Very Coarse
D097EF	198	198 · 1.8 x 7.9 mm	Extra Fine
D097M	198	198 · 2 x 8.1 mm	Medium
D098EF	198	198 · 2.1 x 8.7 mm	Extra Fine
D098F	198	198 · 2.2 x 8.8 mm	Fine
D098M	198	198 · 2.3 x 8.9 mm	Medium
D100M	199	199 · 1.5 x 10.2 mm · D100M	Medium
D101F	199	199 · 1.4 x 10.1 mm	Fine
D101M	199	199 · 1.5 x 10.2 mm · D101M	Medium
D102F	199	199 · 1.6 x 10.1 mm	Fine
D102M	199	199 · 1.7 x 10.2 mm	Medium
D103EF	218	218 · 1.2 x 7 mm	Extra Fine
D104EF	218	218 · 1.3 x 7 mm	Extra Fine
D104M	218	218 · 1.5 x 7.1 mm	Medium
D105M	220	220 · 1.5 x 10.1 mm · D105M	Medium
D106M	220	220 · 1.5 x 10.1 mm · D106M	Medium
D108M	222	222 · 1.3 x 7.2 mm	Medium
D109F	222	222 · 1.4 x 7.1 mm	Fine
D109M	222	222 · 1.5 x 7.2 mm	Medium
D109C	222	222 · 1.6 x 7.3 mm	Coarse
D109VC	222	222 · 1.7 x 7.4 mm	Very Coarse
D110F	223	223 · 1.3 x 9.1 mm	Fine
D110M	223	223 · 1.6 x 9.2 mm · D110M	Medium
D110C	223	223 · 1.7 x 9.3 mm · D110C	Coarse
D110VC	223	223 · 1.8 x 9.4 mm · D110VC	Very Coarse
D111EF	223	223 · 1.4 x 9 mm	Extra Fine
D111F	223	223 · 1.5 x 9.1 mm	Fine
D111M	223	223 · 1.6 x 9.2 mm · D111M	Medium
D111C	223	223 · 1.7 x 9.3 mm · D111C	Coarse
D111VC	223	223 · 1.8 x 9.4 mm · D111VC	Very Coarse
D112M	223	223 · 2.1 x 9.2 mm · D112M	Medium
D112C	223	223 · 2.2 x 9.3 mm	Coarse
D113F	223	223 · 2 x 9.1 mm	Fine
D113M	223	223 · 2.1 x 9.2 mm · D113M	Medium
D114F	223	223 · 2 x 11.6 mm	Fine
D114M	223	223 · 2.1 x 11.7 mm	Medium
D114C	223	223 · 2.2 x 11.8 mm · D114C	Coarse
D115C	223	223 · 2.2 x 11.8 mm · D115C	Coarse

Questions about this page

Which ISO numbers are on the Pro-Cut Diamonds — Round End Taper page?: ISO 193, 196, 198, 199, 218, 220, 222, 223. Pick the size to see each bur's ISO number, head diameter and length, and its part number.
Which grits are available and what do the colour bands mean?: Extra Fine (yellow band), Fine (red band), Medium (blue band), Very Coarse (black band), Coarse (green band).
How many burs come in a pack?: 5 per pack; the price shown is per pack.
What shank type is this?: FG (friction grip, for high-speed handpieces).
What is the maximum operating speed?: 300,000 rpm, as marked on the pack.
Is it sterile and single-use?: Supplied non-sterile — clean and sterilize before each use per the manufacturer's instructions; reusable, not single-use.
How do I find a specific part number?: The table above lists every part number on this page with its ISO, size and grit. Searching the part number (for example D086EF) on this site opens the right page.
Who makes it?: Shofu Dental Corp, Pro-Cut range.
