Which ISO numbers are on the Pro-Cut Diamonds — Flat End Taper page?

ISO 169, 170, 171, 172, 173, 174. Pick the size to see each bur's ISO number, head diameter and length, and its part number.

Which grits are available and what do the colour bands mean?

Medium (blue band), Very Coarse (black band), Coarse (green band), Extra Fine (yellow band), Fine (red band).

How many burs come in a pack?

5 per pack; the price shown is per pack.

What shank type is this?

FG (friction grip, for high-speed handpieces).

What is the maximum operating speed?

300,000 rpm, as marked on the pack.

Is it sterile and single-use?

Supplied non-sterile — clean and sterilize before each use per the manufacturer's instructions; reusable, not single-use.

How do I find a specific part number?

The table above lists every part number on this page with its ISO, size and grit. Searching the part number (for example D060M) on this site opens the right page.

Shofu Dental Corp, Pro-Cut range.

Sold out

ShofuSold out

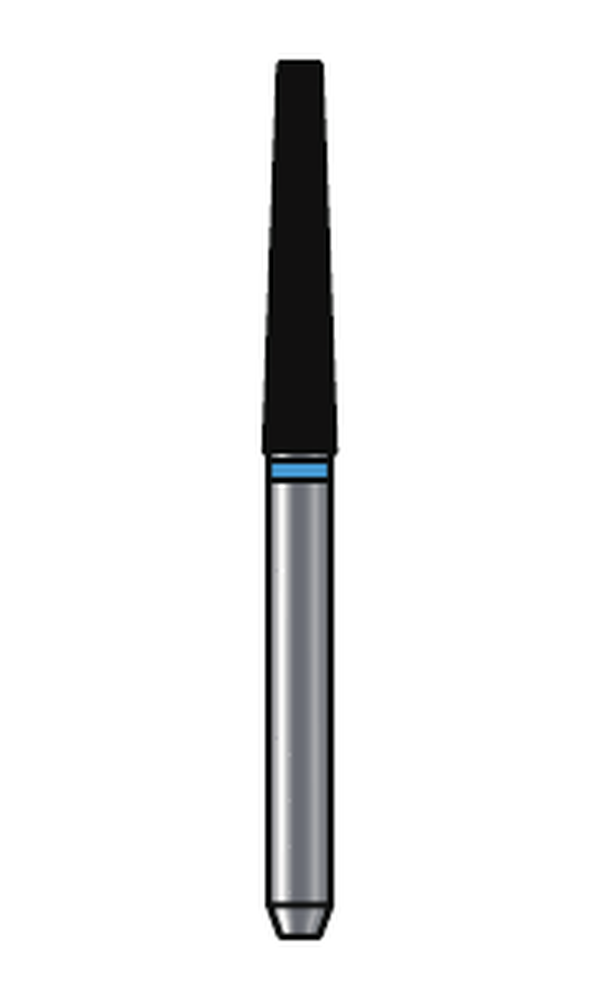

Pro-Cut Diamonds — Flat End Taper

Name: Pro-Cut Diamonds — Flat End Taper
Brand: Shofu
SKU: 102-2409
Availability: OutOfStock

SKU 102-2409MFR# D081M

$37.50 · Sold out

Size (ISO) 173 · 2 x 10.2 mm

169 · 0.9 x 3.1 mm 170 · 1 x 3.7 mm · D061M 170 · 1 x 3.7 mm · D062M 170 · 1.2 x 4.1 mm 170 · 1.5 x 4.2 mm170 · 1.7 x 4.4 mm170 · 1.6 x 5.2 mm 170 · 2 x 5.2 mm · D067M 170 · 2 x 5.2 mm · D068M170 · 2.1 x 5.3 mm170 · 2.2 x 5.4 mm171 · 1.3 x 7.2 mm171 · 1.3 x 7 mm171 · 1.4 x 7.1 mm171 · 1.5 x 7.2 mm 172 · 2.1 x 9.2 mm 173 · 1.3 x 10.2 mm173 · 1.3 x 10 mm173 · 1.5 x 10.2 mm173 · 1.6 x 10.3 mm · D076C173 · 1.7 x 10.4 mm173 · 1.7 x 10.2 mm173 · 1.6 x 10.3 mm · D079C174 · 1.8 x 12.2 mm174 · 1.9 x 12.3 mm173 · 2 x 10.2 mm173 · 2.1 x 10.3 mm173 · 2.2 x 10.3 mm

Grit Medium

MediumVery CoarseCoarseExtra FineFine

At a glance

Burs, Rotary & Finishing
Item code 102-2409
Manufacturer Shofu

Pro-Cut Diamonds are a premium line of multi-use diamond burs engineered for exceptional cutting efficiency, durability and value. Advanced Electro-Deposition Technology and a proprietary multi-coating process retain diamond particles for consistent, reliable performance; the result is a concentric, balanced bur that delivers smooth cutting action and long-lasting performance across a wide range of procedures. More than 300 burs in five color-coded grits, including minimally invasive and short-shank options. Pack of five.

Pro-Cut Diamonds — Flat End Taper: 28 items, 25 Size (ISO) options, 5 Grit options, pack of 5. Select the size and grit to see the exact bur, its ISO number and part number.

Multi-use diamond made with Shofu's Electro-Deposition Technology and multi-layer coating on a single-piece stainless-steel shank, for lasting sharpness, concentric balance and reduced clogging; indicated for cavity and crown preparation and for the reduction or modification of dental materials. Maximum 300,000 min⁻¹. Pack of 5.

ISO numbers on this page: 169, 170, 171, 172, 173, 174.

Part no.	ISO	Size (ISO)	Grit
D060M	169	169 · 0.9 x 3.1 mm	Medium
D061M	170	170 · 1 x 3.7 mm · D061M	Medium
D062M	170	170 · 1 x 3.7 mm · D062M	Medium
D063M	170	170 · 1.2 x 4.1 mm	Medium
D065M	170	170 · 1.5 x 4.2 mm	Medium
D065VC	170	170 · 1.7 x 4.4 mm	Very Coarse
D066M	170	170 · 1.6 x 5.2 mm	Medium
D067M	170	170 · 2 x 5.2 mm · D067M	Medium
D068M	170	170 · 2 x 5.2 mm · D068M	Medium
D068C	170	170 · 2.1 x 5.3 mm	Coarse
D068VC	170	170 · 2.2 x 5.4 mm	Very Coarse
D070M	171	171 · 1.3 x 7.2 mm	Medium
D071EF	171	171 · 1.3 x 7 mm	Extra Fine
D071F	171	171 · 1.4 x 7.1 mm	Fine
D071M	171	171 · 1.5 x 7.2 mm	Medium
D073M	172	172 · 2.1 x 9.2 mm	Medium
D074M	173	173 · 1.3 x 10.2 mm	Medium
D076EF	173	173 · 1.3 x 10 mm	Extra Fine
D076M	173	173 · 1.5 x 10.2 mm	Medium
D076C	173	173 · 1.6 x 10.3 mm · D076C	Coarse
D076VC	173	173 · 1.7 x 10.4 mm	Very Coarse
D078M	173	173 · 1.7 x 10.2 mm	Medium
D079C	173	173 · 1.6 x 10.3 mm · D079C	Coarse
D080M	174	174 · 1.8 x 12.2 mm	Medium
D080C	174	174 · 1.9 x 12.3 mm	Coarse
D081M	173	173 · 2 x 10.2 mm	Medium
D081C	173	173 · 2.1 x 10.3 mm	Coarse
D082C	173	173 · 2.2 x 10.3 mm	Coarse

Questions about this page

Which ISO numbers are on the Pro-Cut Diamonds — Flat End Taper page?: ISO 169, 170, 171, 172, 173, 174. Pick the size to see each bur's ISO number, head diameter and length, and its part number.
Which grits are available and what do the colour bands mean?: Medium (blue band), Very Coarse (black band), Coarse (green band), Extra Fine (yellow band), Fine (red band).
How many burs come in a pack?: 5 per pack; the price shown is per pack.
What shank type is this?: FG (friction grip, for high-speed handpieces).
What is the maximum operating speed?: 300,000 rpm, as marked on the pack.
Is it sterile and single-use?: Supplied non-sterile — clean and sterilize before each use per the manufacturer's instructions; reusable, not single-use.
How do I find a specific part number?: The table above lists every part number on this page with its ISO, size and grit. Searching the part number (for example D060M) on this site opens the right page.
Who makes it?: Shofu Dental Corp, Pro-Cut range.

Product

Manufacturer: Shofu
Manufacturer #: D081M
Item code: 102-2409
UPC / Barcode: 4548162337115

Catalog path

Marketplace: Clinical
Category: Burs, Rotary & Finishing
Subcategory: Diamond Rotary Instruments

Ordering

Status: Sold out

$37.50

102-2409 · 173 · 2 x 10.2 mm / Medium
